IS 25 IDRAMATIC
Hydraulic sausage fillers with pressure regulator - Adjustable pressure from 20 to 130 bar - Stabilized speed regardless of oil viscosity - Foot pedal control with microswitch - Can be used with an additional timer to: . use the Format SX . manage precise portions - Can be connected and interfaced with other machines Optionals - Timer - Format SX
Share:
This product appears in:
Product details
- Model: IS 25 Idramatic
- Power: watt 560 - Hp 0,75
- Cylinder capacity: lt 25
- Cylinder length: mm 460
- Cylinder diameter: ø mm 260
- Piston stroke: mm 380
- Min. forward speed: 2 02
- Max forward speed: 40
- Backward speed: 60
- ø Serie exaust funnels: ø mm 10-18-25

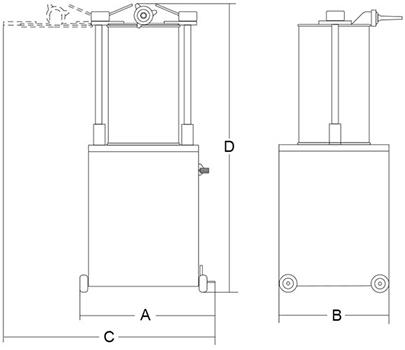

- A: mm 565
- B: mm 450
- C: mm 950
- D: mm 1160
- Net weight: kg 91
- Shipping: mm 720x570x1380
- Gross weight: kg 103
